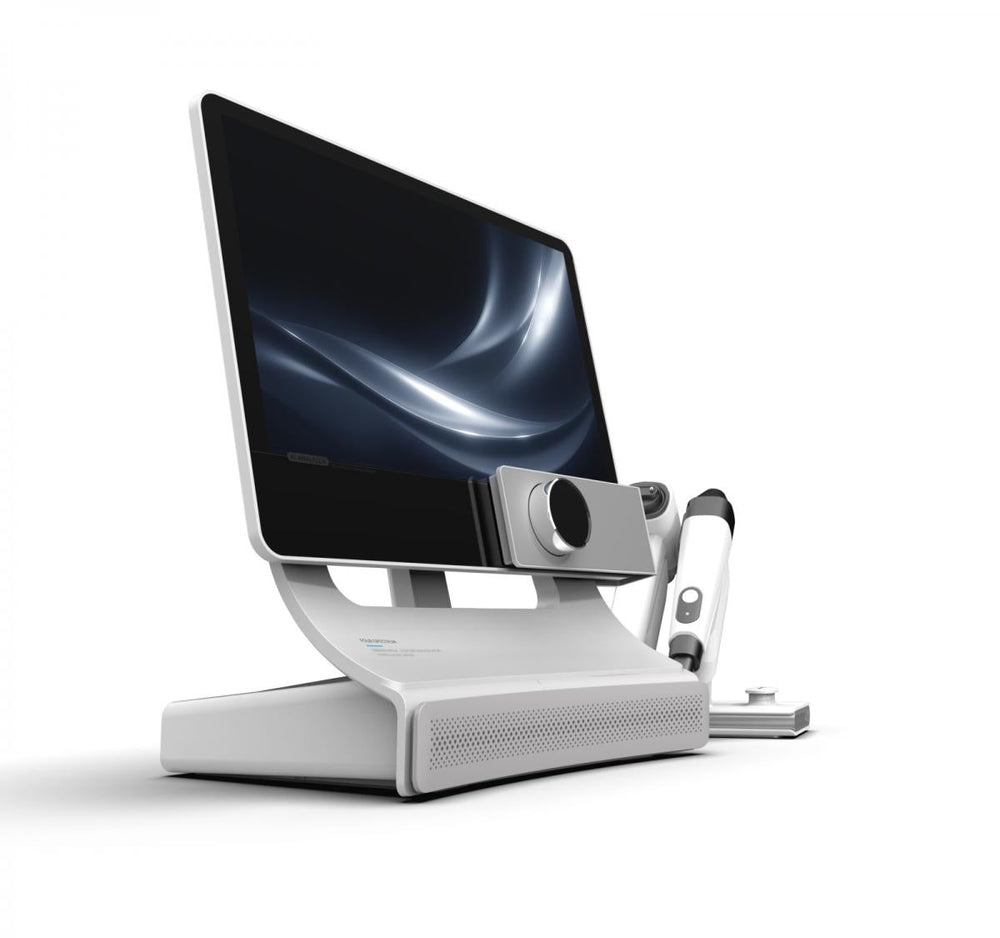

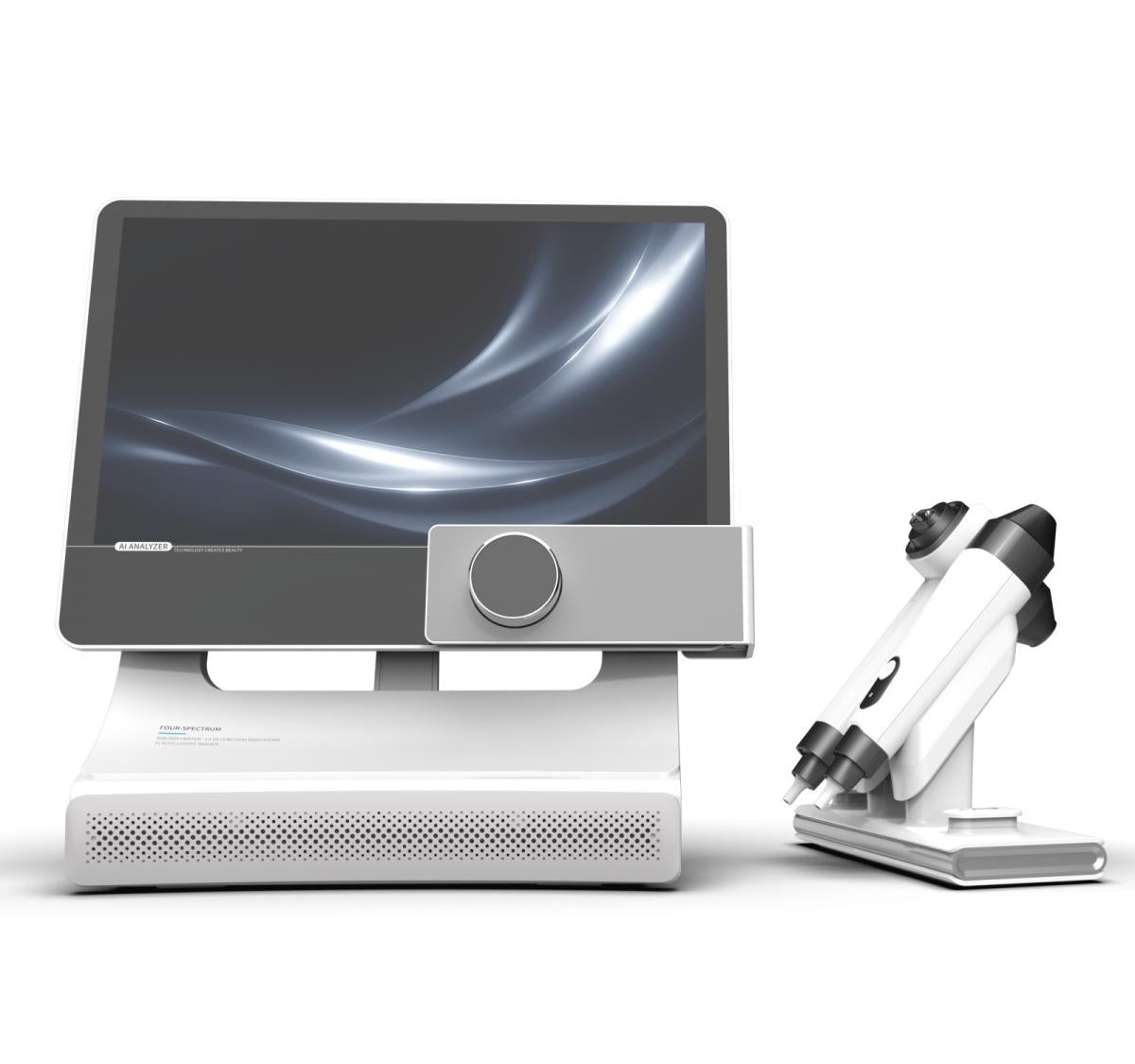

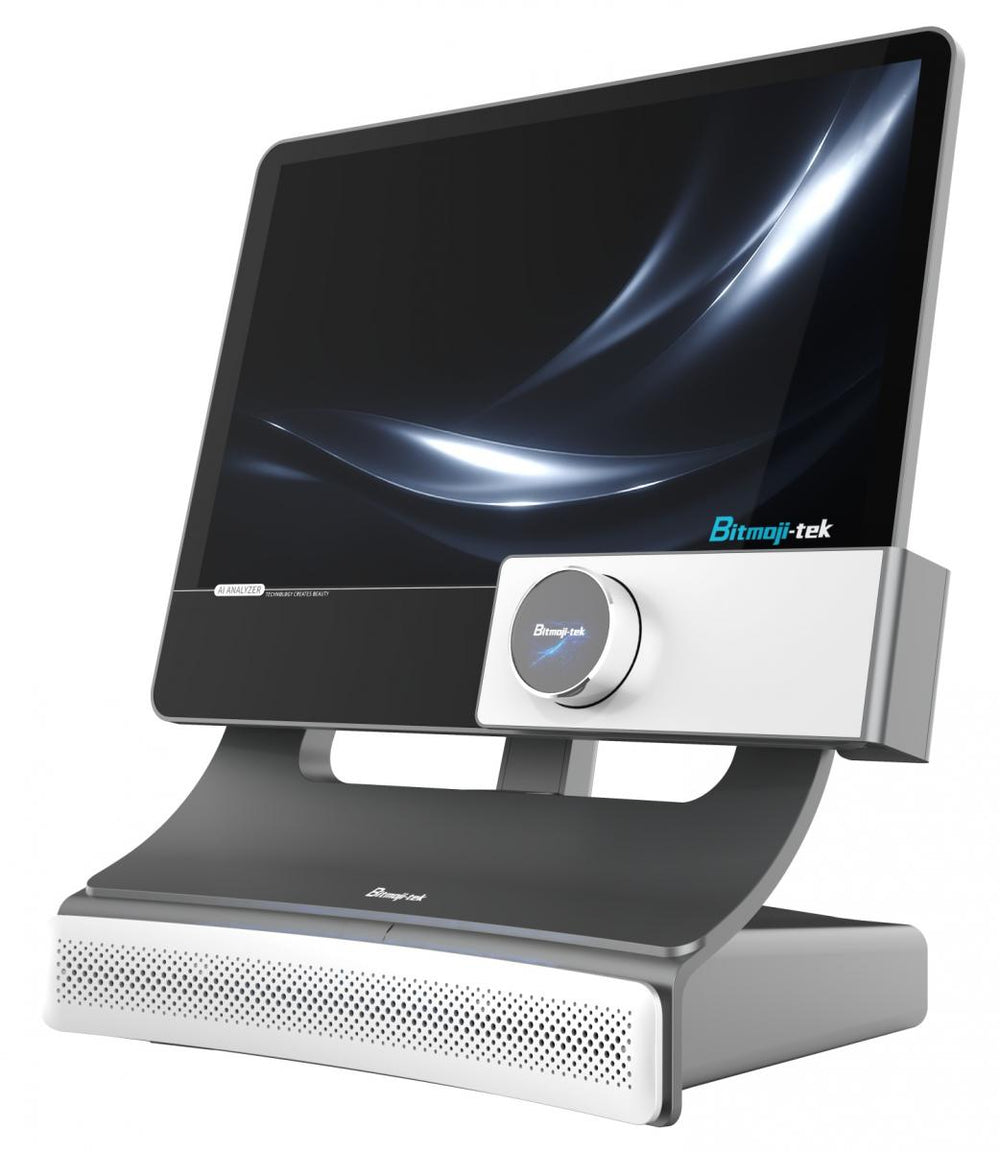

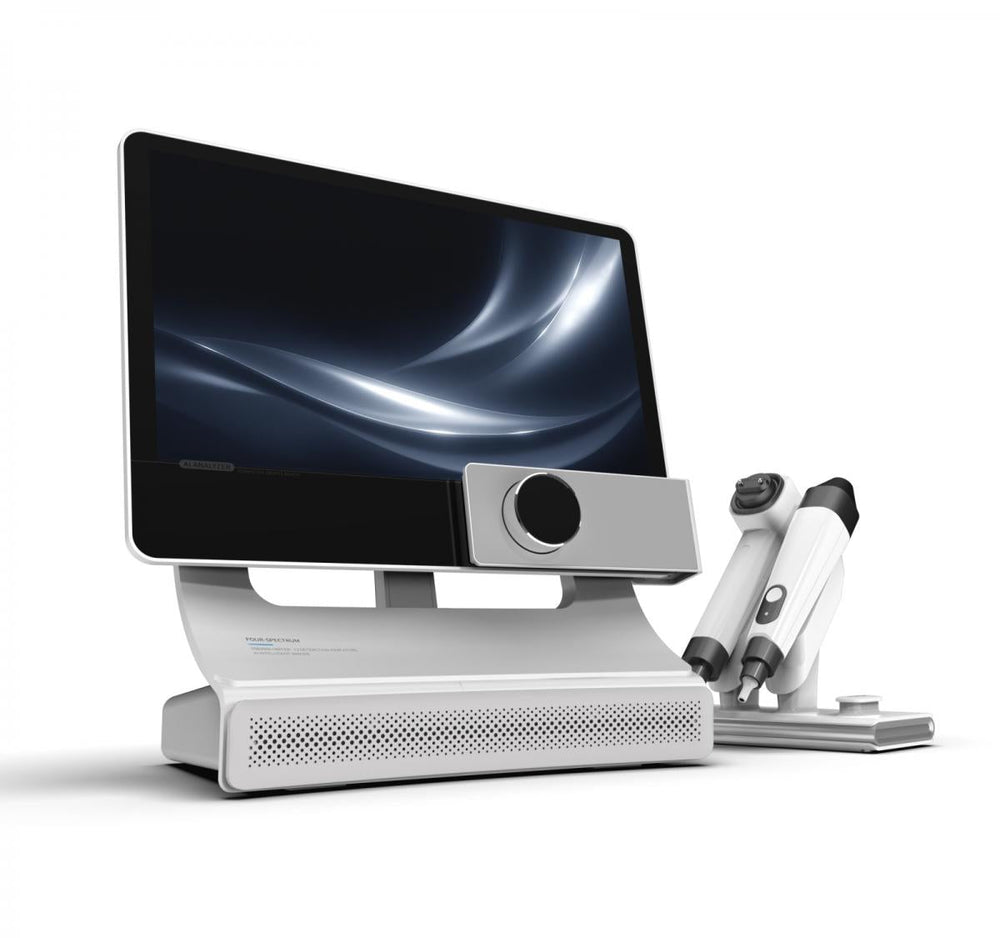

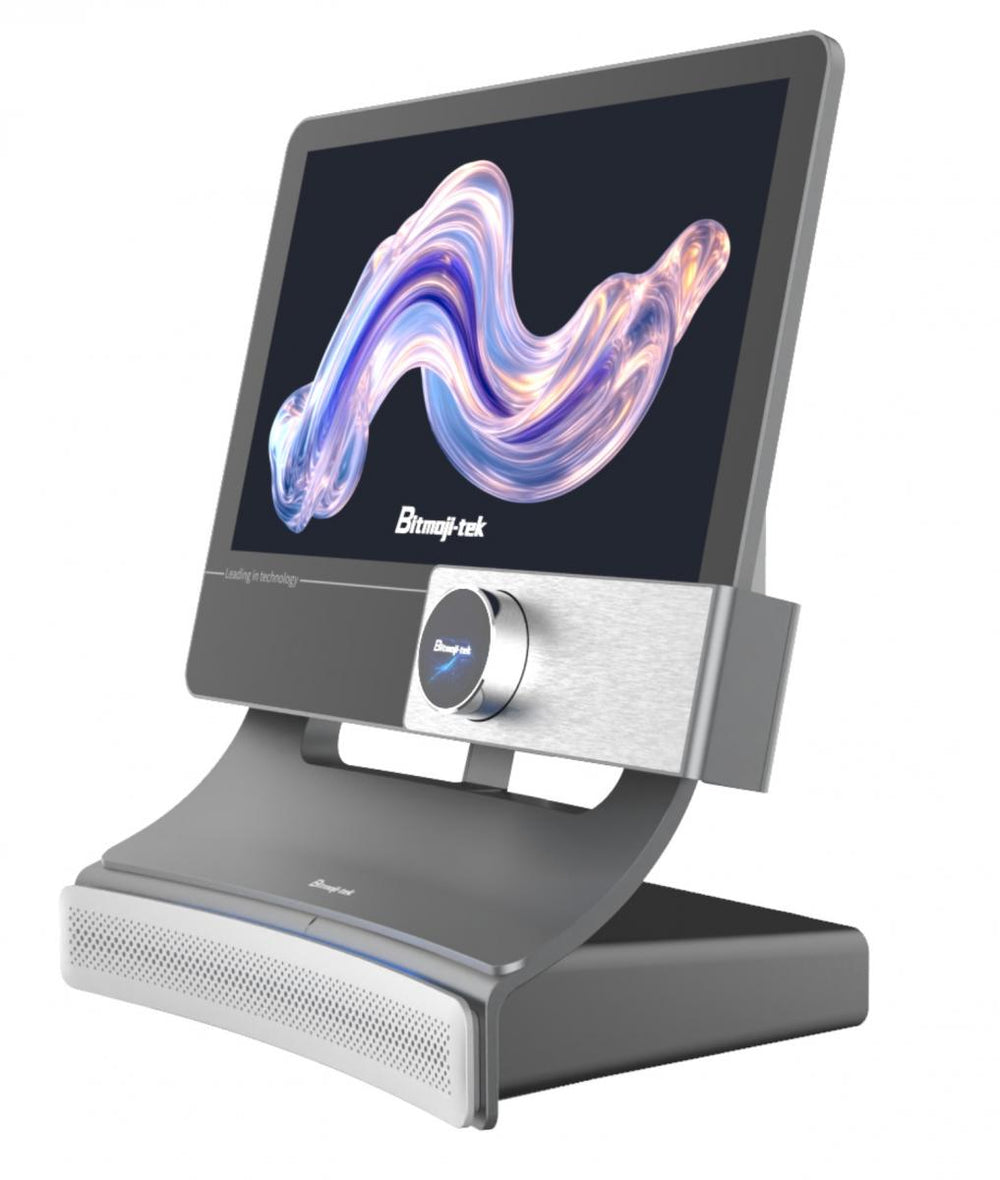

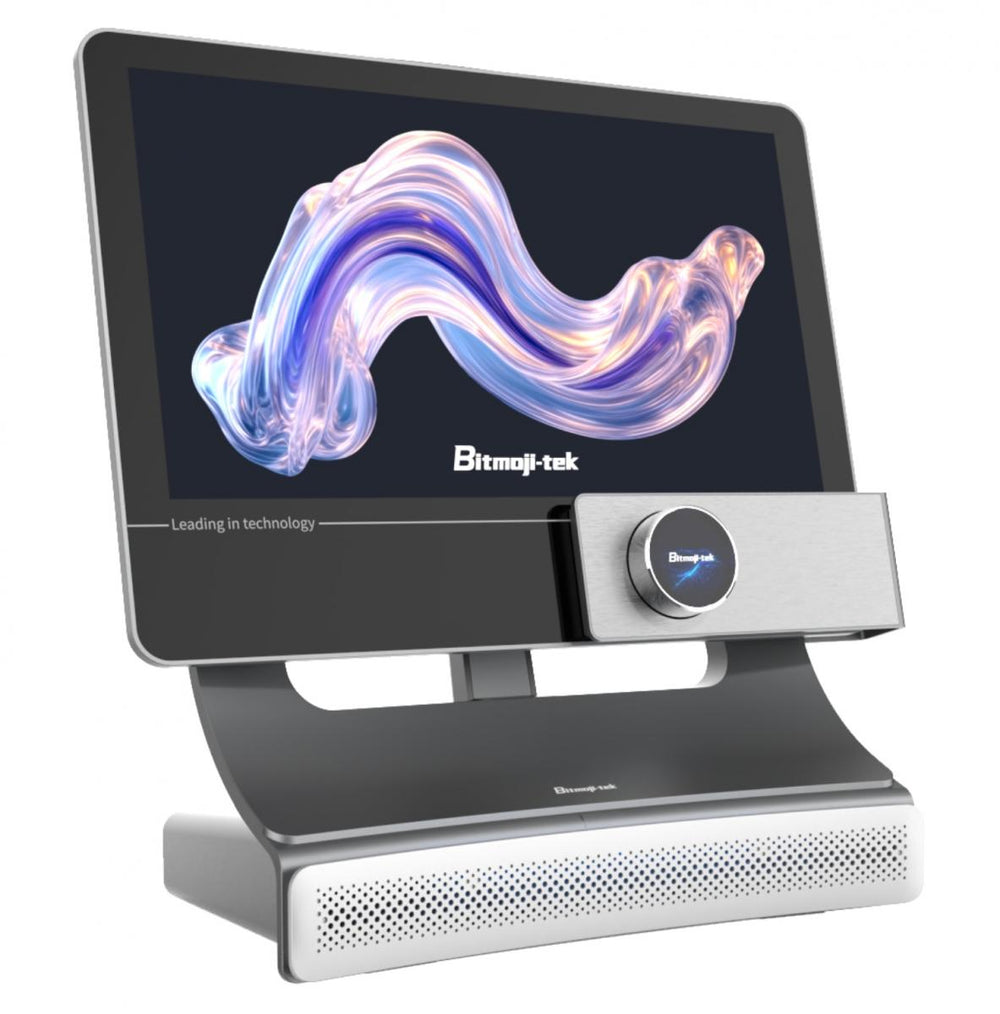

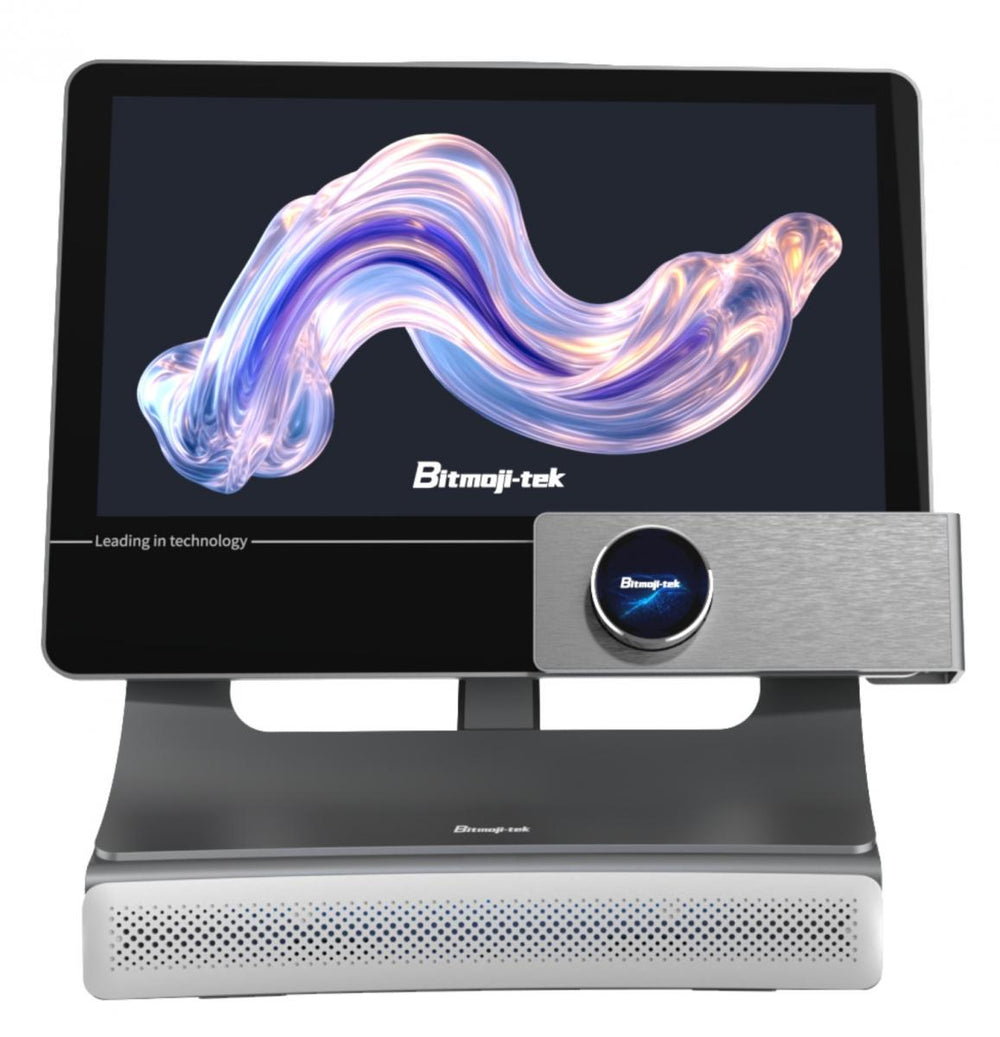

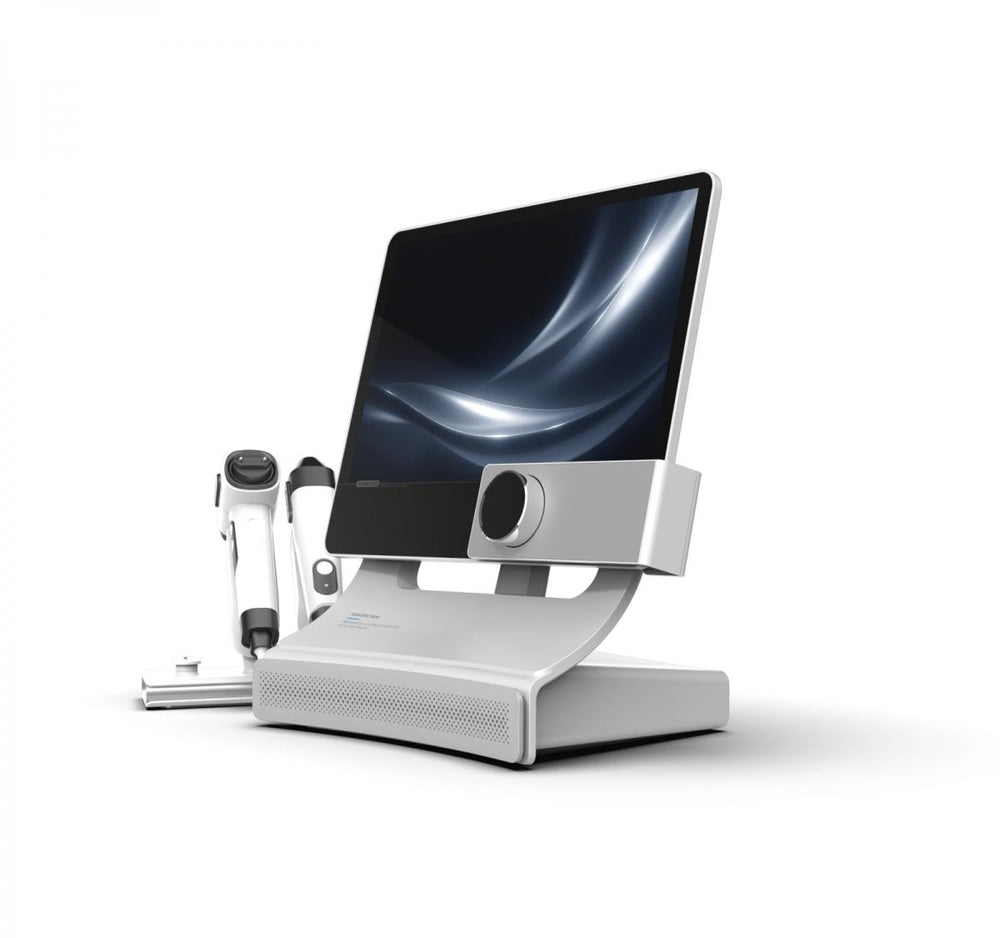

FREYARA T5 AI Scalp Analyzer with 50× & 200× Imaging

* Three‑Spectrum High‑Precision Imaging – Integrates white light, UV (365nm), and negative polarization light to capture scalp conditions from the epidermis to the dermis. White light reveals surface texture and hair density; UV light excites natural fluorescence to detect follicle blockages and residues; cross‑polarized light penetrates deeper to visualize capillaries, pigmentation, and inflammation. Provides a complete diagnostic foundation for hair loss, sensitivity, dandruff, and aging concerns.

* AI‑Powered Analysis with 13 Scalp Indicators – Automatically quantifies oiliness, sensitivity, white hair, hair loss, aging, follicle health, barrier function, inflammation, dandruff, sebum, capillaries, pigmentation, and hair thickness. Covers five key areas (forehead, top, left, right, occiput) and classifies results into 32 scalp types based on oiliness, sensitivity, hair color, hair loss, and aging. Enables precise, data‑driven diagnosis.

* Flexible Detection Modes & 200x Magnification – Offers five workflows: rapid detection, comprehensive test, single‑item test, moisture detection, and real‑time preview. Switch between 50x handheld imaging for single‑indicator reports or 200x magnification for immersive microscopic viewing without generating a report. Suitable for quick screenings, in‑depth evaluations, and detailed follicle inspections.

Comprehensive Reporting & Data Management – Generates single‑item reports, comprehensive analysis reports, and comparative reports with color‑coded levels (Green to Red) across five scalp areas. Each report includes scores, problem analysis, skincare advice, and downloadable options.

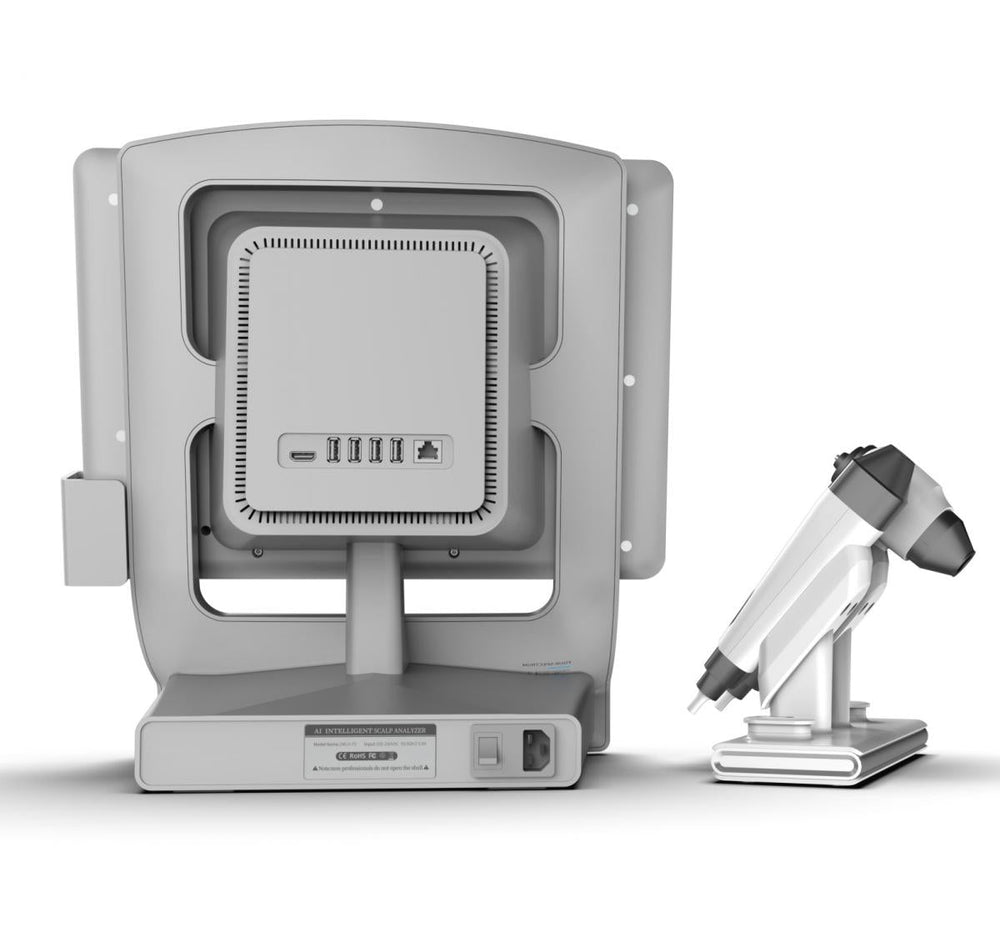

Professional Hardware & Customizable Settings – Powered by an octa‑core Cortex‑A53 processor, Android 13 system, 4GB RAM, and 32GB storage. Features a 15.6‑inch full‑HD capacitive touchscreen, dual‑band Wi‑Fi, and multiple USB/HDMI ports. Supports manual parameter adjustment for individual or batch data optimization, allowing professionals to fine‑tune results to match clinical judgment or calibration needs.

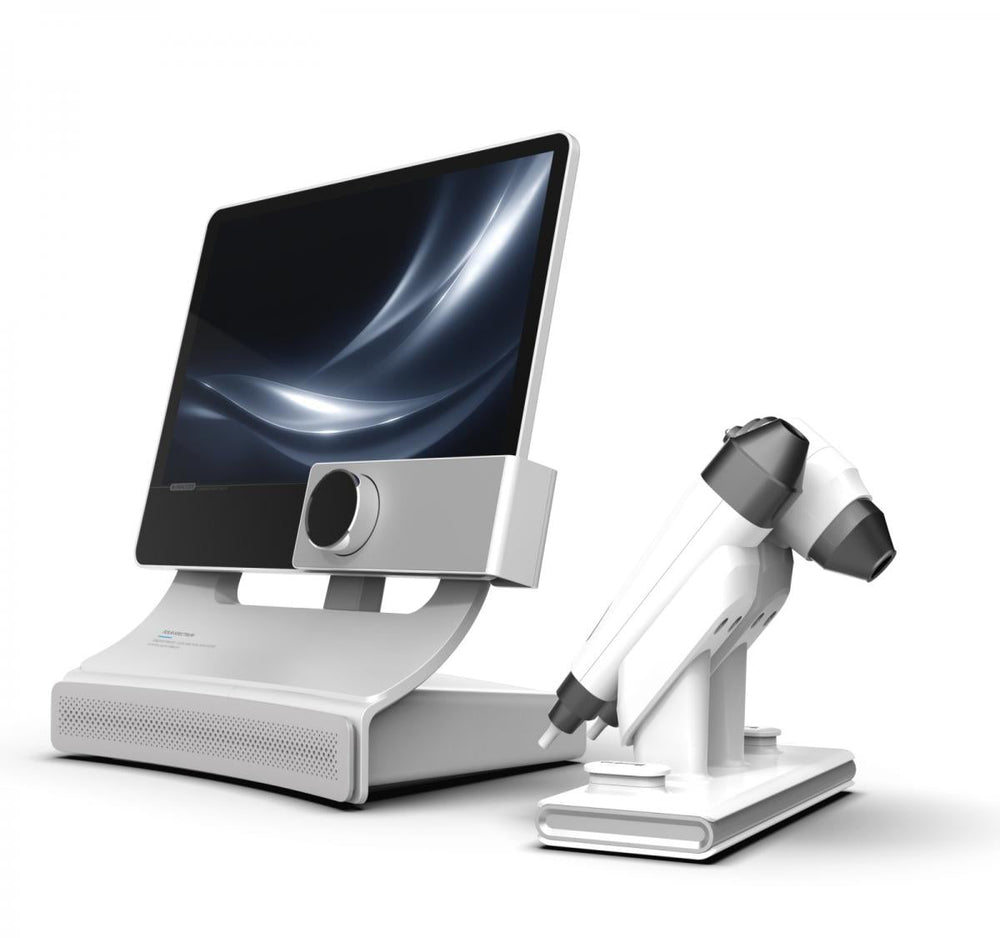

The T5 AI Intelligent Imager is a professional scalp diagnostic device developed to solve scalp and hair problems. It integrates ISP image processing technology and three‑spectrum light‑sensing imaging (white light, negative polarization light, and UV light). With a high‑definition lens and AI‑powered image analysis, it converts microscopic scalp conditions into intuitive visual data.

The device evaluates five key areas—forehead, left side, right side, top of the head, and occipital region—and analyzes thirteen scalp indicators, including follicle health, sebum secretion, inflammation, barrier function, and hair loss risk. It provides a complete, objective picture of scalp health, suitable for clinics, beauty salons, and hair care centers.

2. Key Features

• Three‑Spectrum Imaging – White light, UV light (365nm), and negative polarization light for multi‑layer analysis.
• AI‑Driven Analysis – Automatically identifies and quantifies scalp conditions.
• 13 Detection Indicators – Comprehensive coverage from oiliness to aging.
• 5 Detection Modes – Flexible workflows: rapid test, comprehensive test, single‑item test, moisture detection, real‑time preview.
• 200x Magnification – Detailed microscopic view for immersive inspection.
• 32‑Type Scalp Classification – Systematic categorization based on oiliness, sensitivity, hair color, hair loss, and aging.
• Comprehensive Reporting – Single‑item reports, comprehensive analysis reports, and comparative reports.
• Watermark & Birthday Reminder – Custom branding and customer engagement tools.
• Parameter Adjustment – Manual fine‑tuning of data results for accuracy.

3. Technical Advantages

• High‑Precision Optics – Industrial‑grade lens with cross‑polarizer technology to eliminate stray light.
• AI Image Processing – Converts microscopic images into quantifiable data with automatic scoring.
• Multi‑Spectrum Fusion – Combines white light, UV fluorescence, and cross‑polarized light to reveal scalp layers from epidermis to dermis.
• Stable Hardware Platform – RK‑3568 octa‑core processor, Android 13, 4GB RAM, 32GB storage, and 15.6‑inch full‑HD touchscreen.

4. Three‑Spectrum Image Analysis

White Light

• Theory: Under uniform natural light, stray light is filtered out to clearly present visible scalp problems in the epidermis.
• Application: Observes scalp texture, skin grooves/ridges, color, hair density, thickness, and sensitivity.

Negative Polarization Light

• Theory: A special cross‑polarizer lens group reduces direct reflected light. It captures images from the basal layer and dermis, which are rich in melanin and hemoglobin.
• Application: Displays capillary status, pigmentation, white hair, follicle health, dandruff, red blood streaks, sensitive inflammation, and pigmentation abnormalities.

UV Light (365nm)

• Theory: UV light excites natural fluorescence in scalp cells and tissues. Invisible light is converted into visible fluorescence, penetrating different skin layers.
• Application: Reveals blockage of hair follicle openings, dandruff, and fluorescent agents (e.g., from product residues).

5. Thirteen Detection Indicators

The system quantitatively analyzes the following indicators:

• Oiliness
• Sensitivity
• White hair
• Hair loss
• Aging
• Follicle health
• Scalp barrier function
• Inflammation
• Dandruff
• Sebum secretion
• Capillary visibility
• Pigmentation
• Hair thickness

Each indicator is scored and graded across the five scalp areas.

6. Detection Modes & Operation

200x Magnified View

• Provides an immersive, high‑detail microscopic image.
• No automatic report generation; allows manual observation and switching between different handpieces.

Detection Areas

• Five positions: Forehead, top of the head, left side, right side, occipital region.
• After completing three‑spectrum imaging for each area, the system guides you to the moisture detection page.

7. Reporting Modes

7.1 Single Independent Report

• Data Analysis: Score, level, quantity, area, proportion for each indicator.
• Color‑Coded Levels: Five levels from high to low—Green (A), Blue (B), Yellow (C), Orange (D), Red (E)—displayed across the five scalp areas.
• Popular Science Knowledge: Brief explanation of each scalp condition.
• Problem Analysis: Detailed breakdown of detected issues.
• Daily Skincare Advice: Personalized recommendations.
• Recommended Solutions: Product or treatment suggestions.
• Download Option: Save or print the report.

7.2 Comprehensive Analysis Report

• Personal Information: Customer details (optional).
• 32‑Type Scalp Classification: Categorization based on oiliness, sensitivity, hair color, hair loss, and aging.
• Hair Loss Classification: Specific grading of hair loss severity.
• Comparative Analysis: Scores of each test item across different detection sessions or areas.
• Suggestions: Integrated advice based on all indicators.

7.3 Comparative Report

• Compare results from different dates or different scalp areas.
• Supports side‑by‑side analysis of any single indicator.
• Useful for tracking treatment progress.

8. 32‑Type Scalp Classification System

The system combines five dimensions to create 32 distinct scalp types:
